Appendix B

Pin definitions

There are eight wires on a standard UTP/STP cable and each wire is color-

coded. The following shows the pin allocation and color of straight and crossover

cable connection:

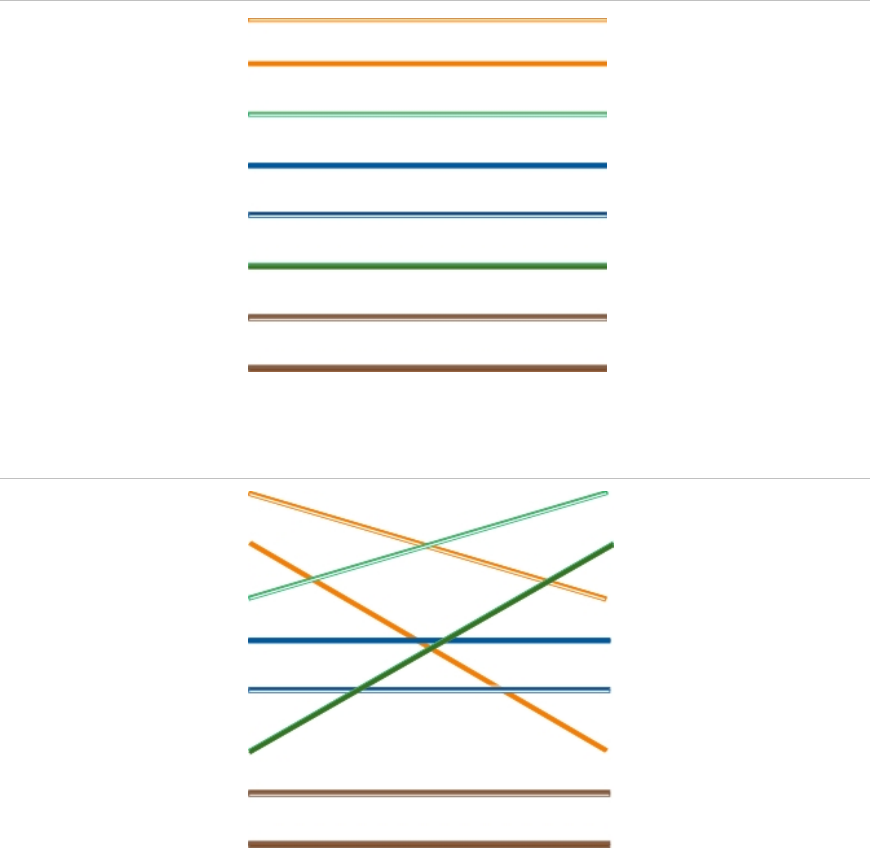

Figure 23: Straight-through cable

1 White/Orange White/Orange 1

2 Orange Orange 2

3 White-Green White-Green 3

4 Blue Blue 4

5 White/Blue 5

White/Blue

6 Green 6

Green

7 White/Brown 7

White/Brown

8 8

Brown Brown

Figure 24: Cross-over cable

1 White/Orange White/Orange 1

2 Orange Orange 2

3 White-Green White-Green 3

4 Blue Blue 4

5 White/Blue White/Blue 5

6 Green Green 6

7 White/Brown White/Brown 7

8 Brown

Brown 8

TruVision IP Do

me Open-Standards User Manual 57
